Comfortable Fit
Breathable, quick-drying fabric moves with the wearer. A close fit keeps textile sensors against the body for consistent recordings during daily activities, laboratory sessions, and repeated wear.
Hexoskin Smart Clothing for Physiological Research
Collect continuous ECG, breathing, and movement data with comfortable, washable smart clothing. Hexoskin combines textile sensors, a compact recorder, and connected software so your team can follow physiology through daily activities, exercise, and sleep, with access to raw signals and meaningful metrics.
Designed to Be Worn, Built to Be Reused

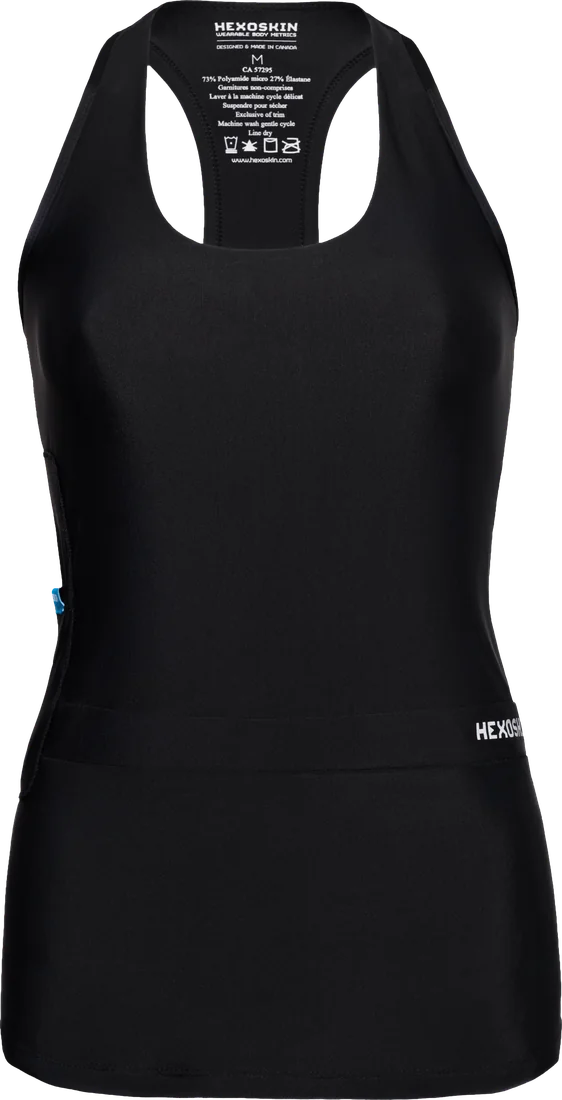

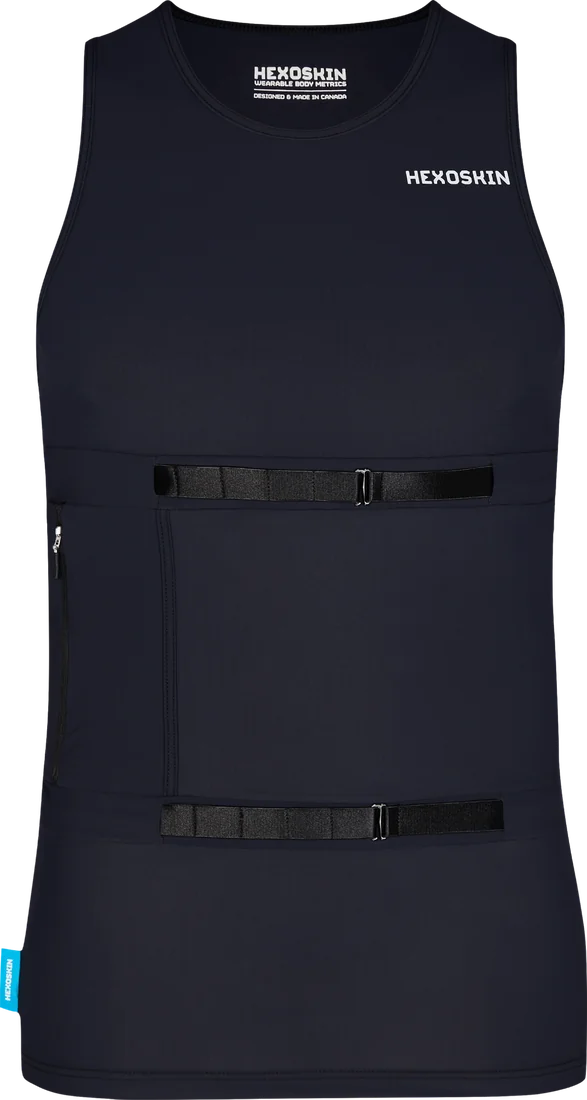

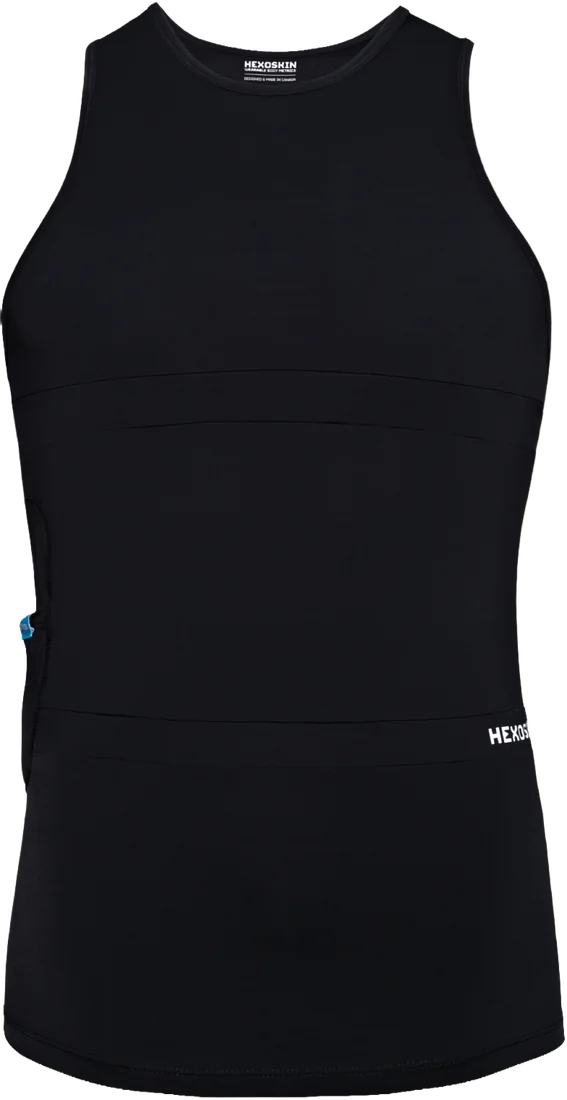

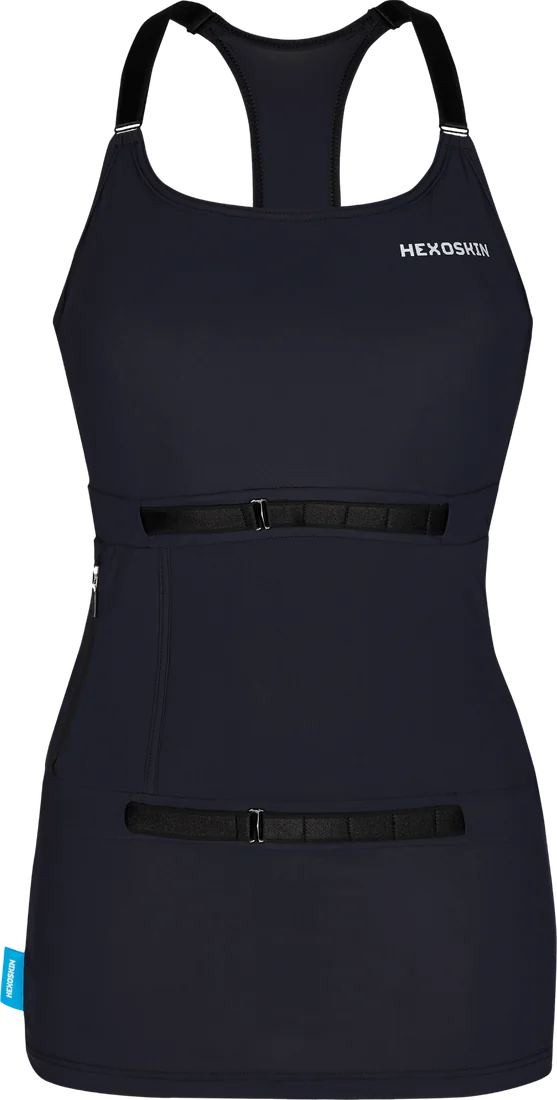

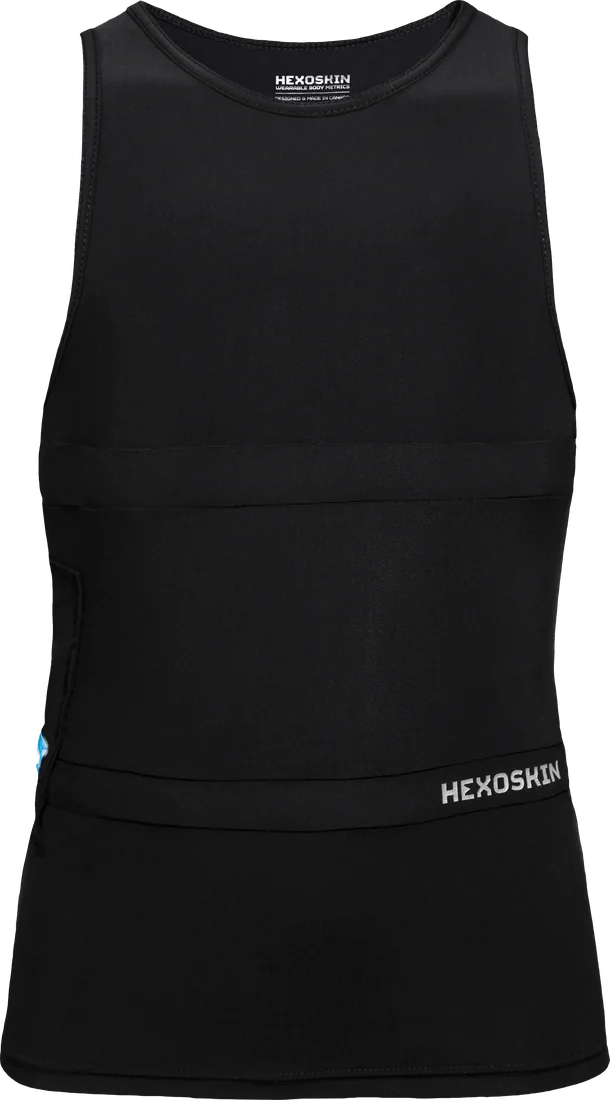

Lightweight, breathable fabric and integrated textile sensors make Hexoskin practical for repeated wear. ProShirts add adjustable belts and recorder-position slots to help maintain a close fit. Choose men’s and women’s ProShirts or Original shirts, plus junior sizes for younger participants.
Wash and Reuse
Machine-washable garments are designed for repeated wear. Remove the recorder before washing, and follow care instructions to protect the fabric, connectors, and sensors.
Record on the Go

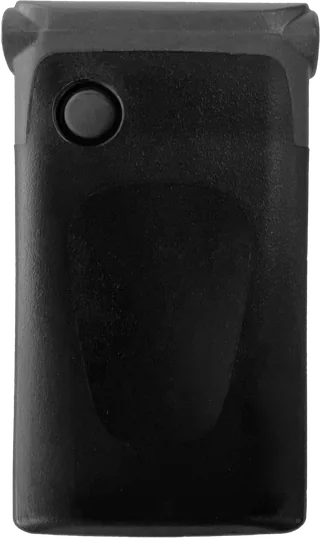

Hexoskin’s rechargeable recorder collects data for up to 36 continuous hours. Recordings are stored locally for later synchronization, supporting data collection beyond the laboratory.
What Does Hexoskin Measure?
Select a marker to explore each sensor and the research data it provides.
1ECG and Heartbeat Timing
256 Hz · 12-bit ECG
Textile electrodes capture a single-lead electrocardiogram at 256 samples per second, with a 0.0064 mV digital resolution. The waveform supports beat detection, RR intervals, heart rate, and heart rate variability (HRV) analysis. Review cardiac responses to activity, recovery, and sleep with access to the underlying signal and quality channels.
2Thoracic Breathing
128 Hz · Dual-Channel RIP - Thoracic
A respiratory inductance plethysmography (RIP) sensor follows expansion and contraction of the chest. Together with the abdominal channel, it records breathing patterns and supports breathing rate, inspiration and expiration events, and ventilation estimates. This helps relate respiratory changes to cardiac activity and movement.
3Abdominal Breathing
128 Hz · 16-bit · Dual-Channel RIP - Abdominal
The second RIP channel follows abdominal movement. Two channels let you examine chest and abdominal contributions to breathing. Tidal volume and minute ventilation are derived estimates; calibration and the selected processing method matter when interpreting volume in litres.
4Movement and Activity
64 Hz · 3-Axis Acceleration
The recorder’s accelerometer captures movement on three axes. Derived outputs include activity, steps, cadence, and position. Use this context to distinguish changes associated with movement from changes during rest, and combine the signals for sleep-related analysis.
From Raw Signals to Results You Can Explain
Hexoskin records ECG at 256 Hz, both breathing channels at 128 Hz, and acceleration at 64 Hz. Keep the waveforms behind your metrics to inspect recordings, apply your own analysis, and develop reproducible methods.
Inspect Signal Quality
Identify sensor disconnections, electrical noise, movement artifacts, and unreliable RR intervals. Use quality channels to select recording periods and assess the signals behind your physiological data analysis and research findings.
Explore Data ChannelsUnderstand Your Metrics
Connect cardiac timing, breathing patterns, and movement to your research question. Interpret derived metrics with their processing methods, recording quality, and applicable calibration in mind.
Explore MetricsExplore the Evidence
Explore published methods and results before choosing study endpoints. Assess accuracy against reference methods for your metric, population, and conditions; sampling rate alone cannot establish accuracy.
Explore Hexoskin PublicationsSee the Signals, Manage the Study
Hexoskin OneView
Bring study teams, participants, recordings, annotations, and surveys into one research workspace. Review signal quality and study progress, then export raw data and reports for analysis.
Explore OneViewHexoskin OneApp
Use the Hexoskin OneApp on iOS or Android to view live ECG, breathing, and activity, mark events, and follow recordings. OneSync transfers recorded data for later review and analysis.
Explore Hexoskin OneAppTools for Developers
Take Hexoskin data into your own analysis, applications, and research environment. Choose the tools and licensing that fit your project, from data synchronization and local decoding to API access and custom app development.
OneSync
Synchronize Hexoskin and Astroskin recordings for review and analysis. If your workflow requires locally processed files, discuss local decoding options and project requirements with our team.
OneAPI
Access physiological recordings and derived data through OneAPI. Discuss your analysis workflow, integration requirements, and licensing options with our team to get a quote for your project.
OneSDK
Build Android integrations and live-data applications with OneSDK. Discuss device compatibility, development requirements, and license scope with our team to get a quote for your integration.
Wearable Research Across Disciplines
Academic & Institutional Research
Connect teaching and research with physiological data. Explore projects for students, professors, laboratories, institutes, and university-affiliated medical centers, from practical coursework to doctoral research.
Explore Academic Research
Human Performance & Safety Research
Study people in the settings where they work and perform. Bring physiological measurements into private-company R&D, human factors, occupational research, defense, first-responder training, and aerospace projects.
Explore Applied ResearchBiopharma & Clinical Development
Explore published studies using Hexoskin and Astroskin in clinical research. Follow the study questions and methods to find literature relevant to your research program.
Explore the Full Research Picture
See how Hexoskin and Astroskin fit different research questions, compare the platforms, and explore the scientific literature across disciplines.
Your Project With Hexoskin+
Make your research budget go further with Hexoskin+. Get expert guidance on Hexoskin and Astroskin wearable monitoring, discounts on qualifying quantities, and equipment, software, training, and support tailored to your project.
Discuss your project for integration advice, grant support letters, and help with bid requirements. to explore pricing and program benefits for your team.
